Thursday, March 12, 2015

WALES



When your build location is a little cramped and the ground not perfectly even, you have to get creative. I do not have 16' of level ground area to glue the scarphs on the wales. I needed a jig that would hold the scarph cuts together while the epoxy cured. This is what I came up with.

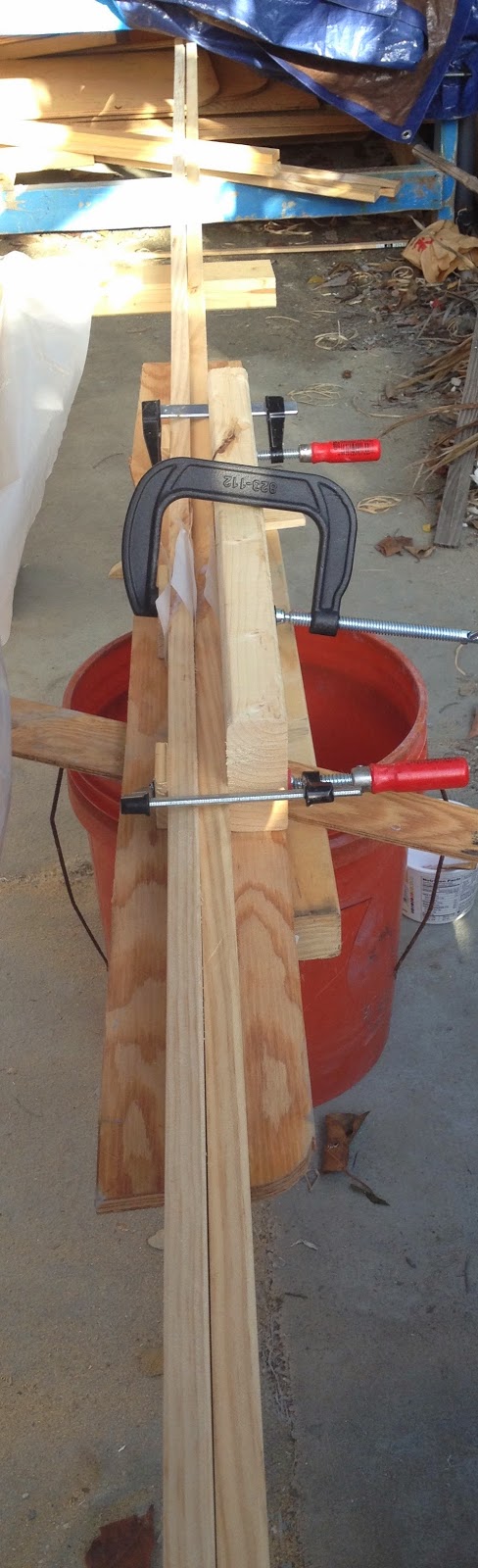

I took a plywood scrap and screwed a scrap 2x4 to it, making sure that they were square. I then clamped my glued wales to this jig, holding them straight while they cure. I should have perfectly straight... 3/4" x 1 1/2" x 16' lumber.

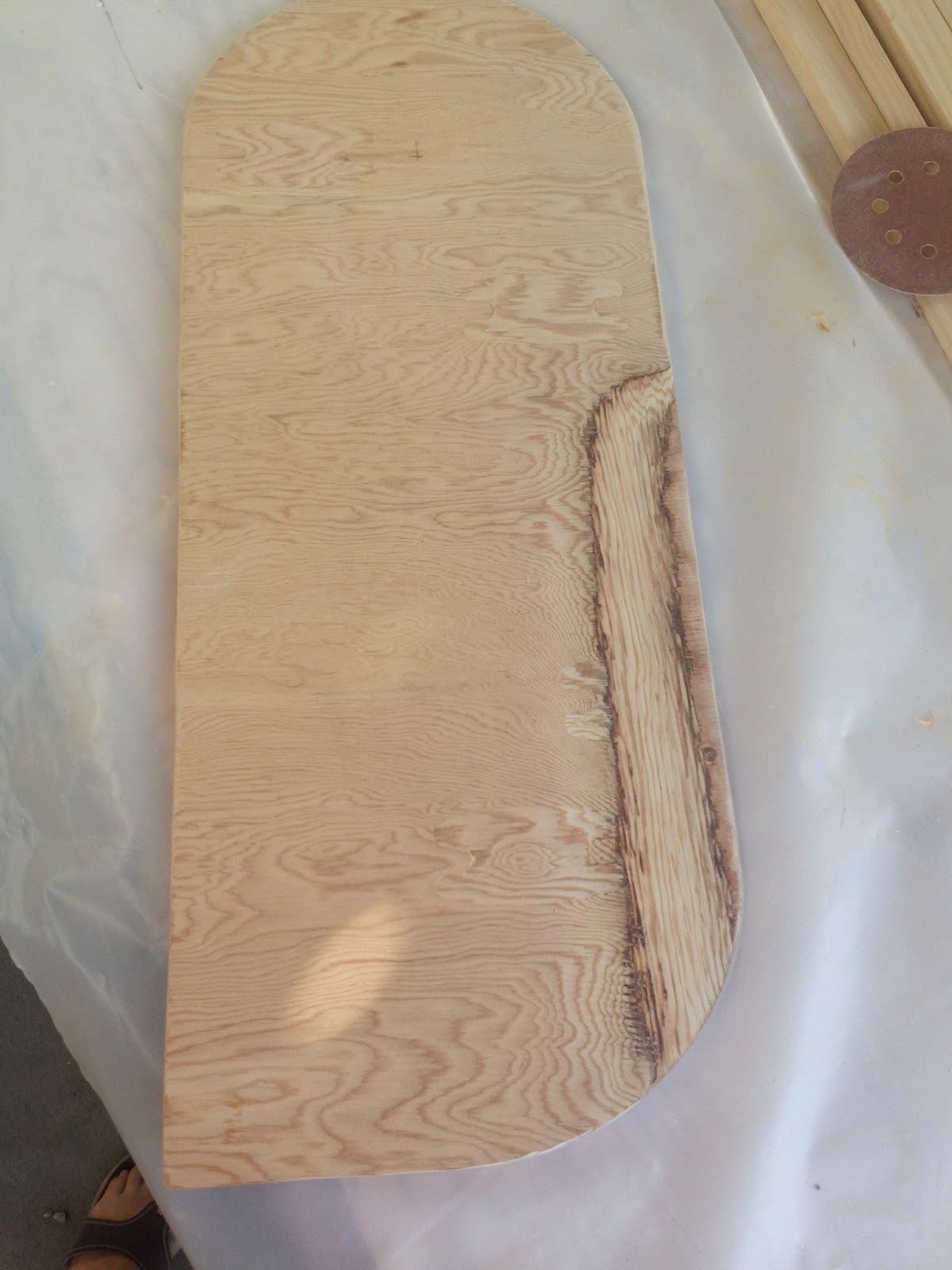

The plans are not specific when it comes to the shaping of the rudder, so we will see how this works.

With the time change, I will have another hour of daylight after work. This will help with the progress of this build.
